1905 Vertical Domestic Engine
This Vertical Domestic engine was started in January 2018 and finished in February 2019.

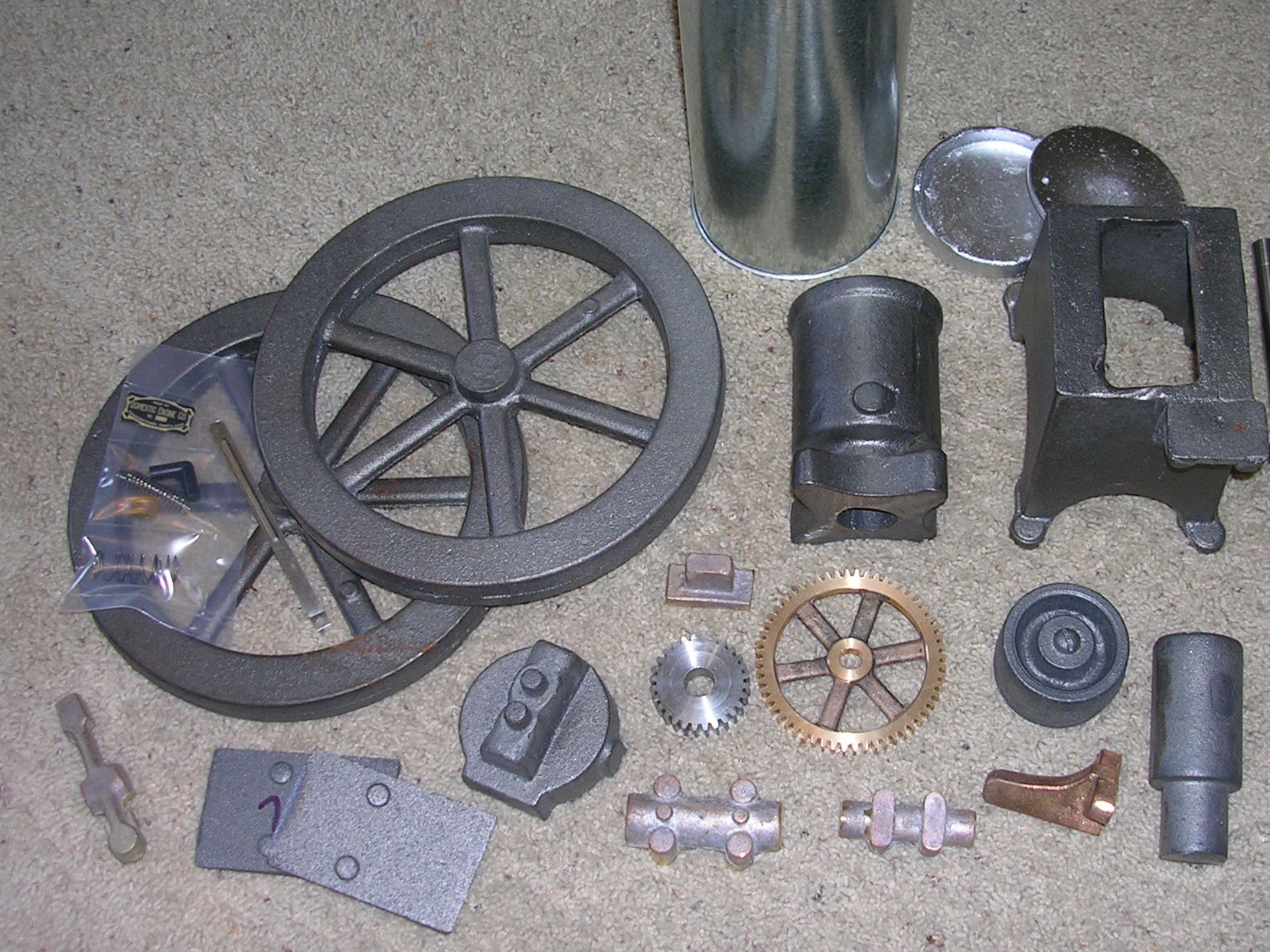

Castings as purchased from Bob Herder.
Castings as purchased from Bob Herder.
Starting the crankshaft.

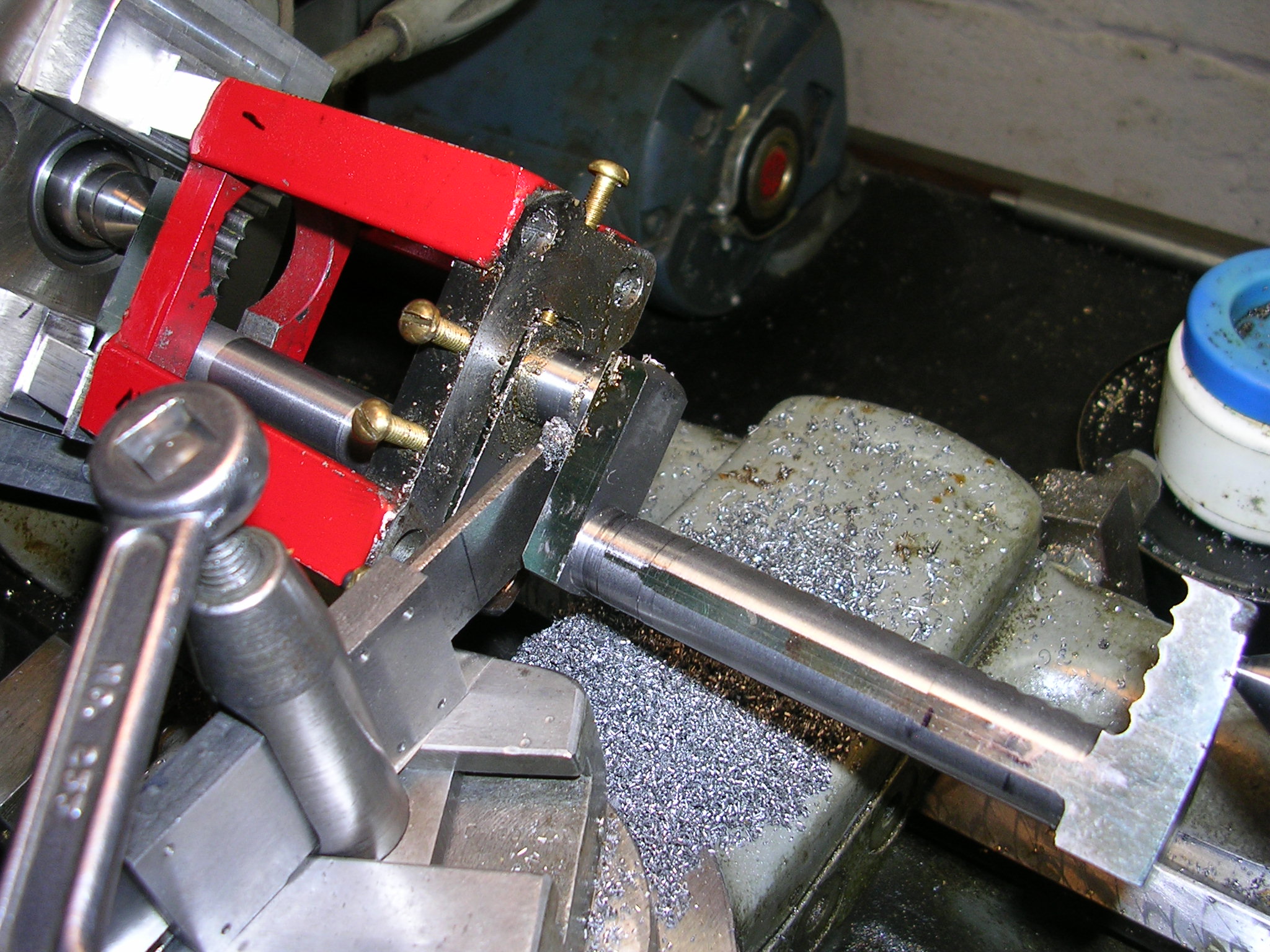

Roughing the crankshaft.

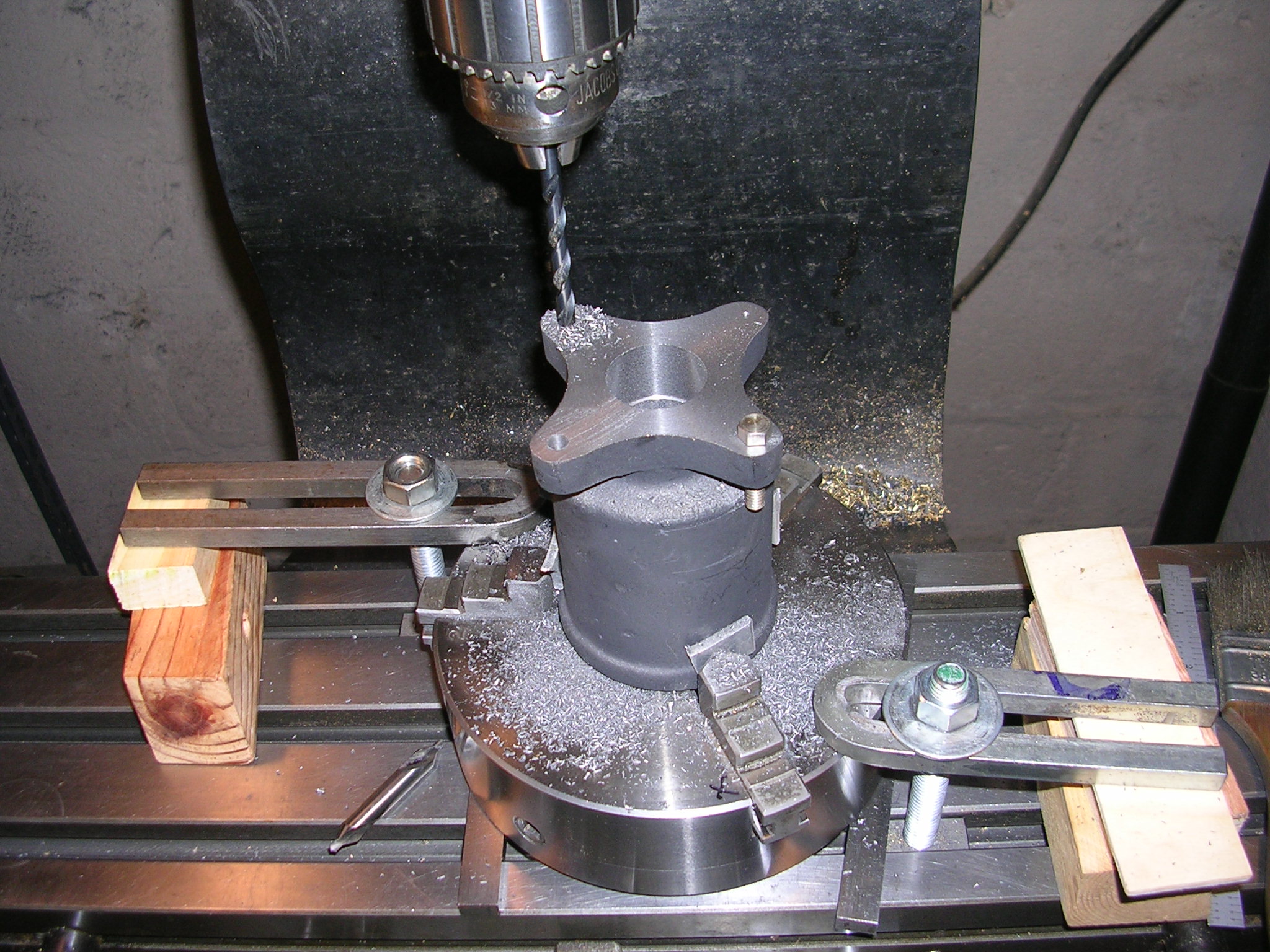

Drilling the cylinder base mounting holes.

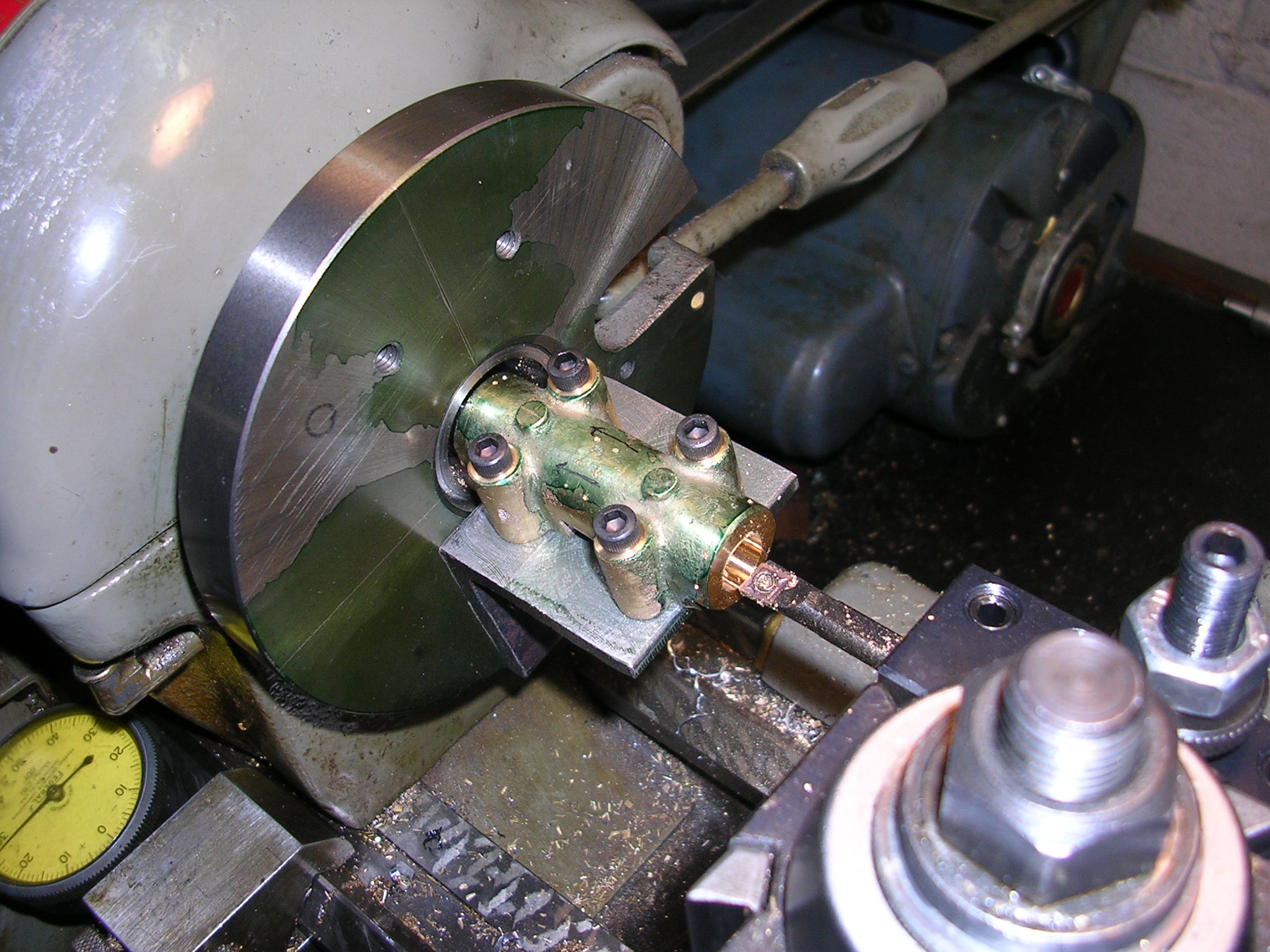

Boring the main bearings.

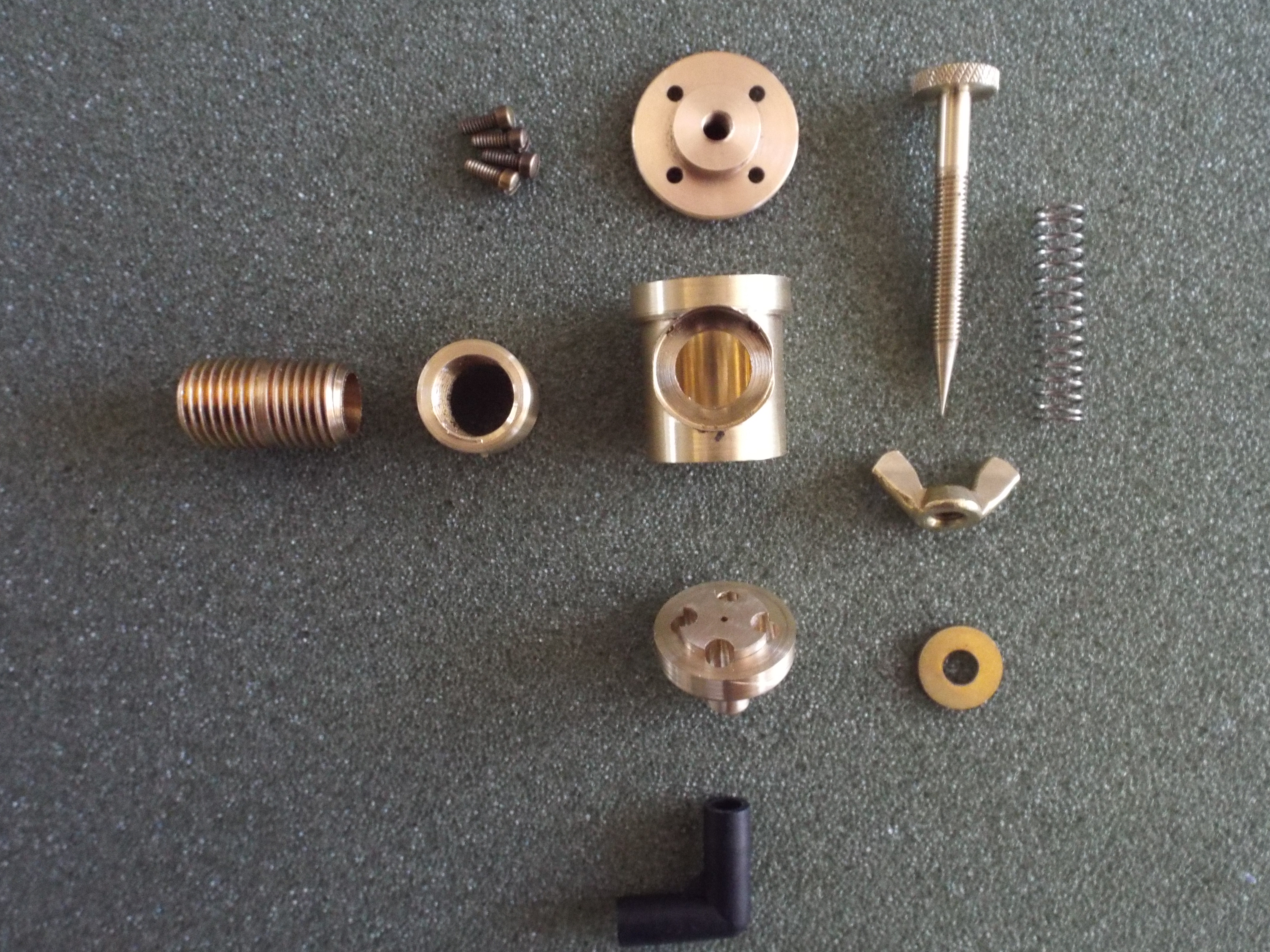

The Carburetor before soldering.

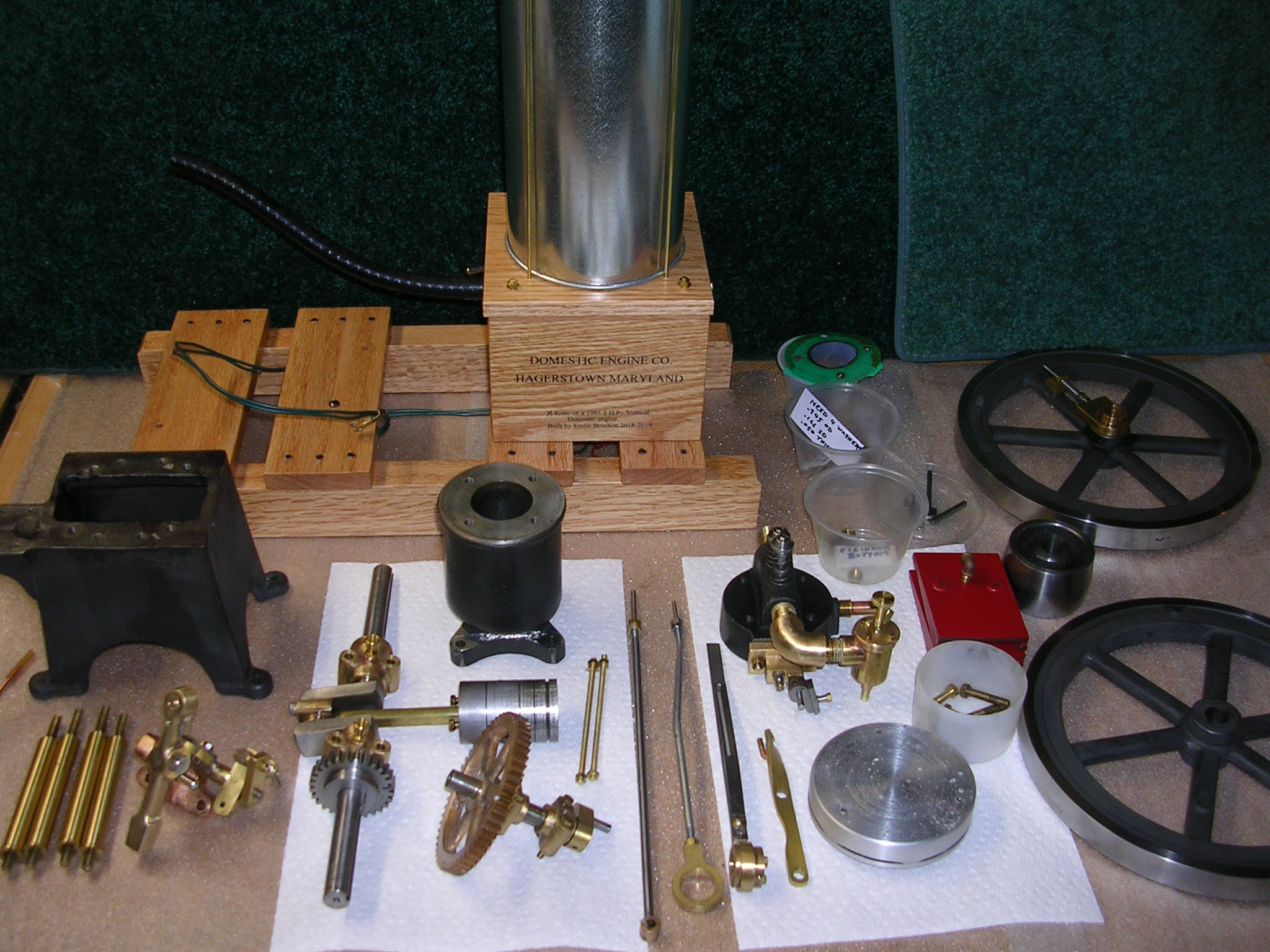

Before painting and final assembly.
Domestic engine finished and primed.
I almost painted it black but gave in and went with the red.

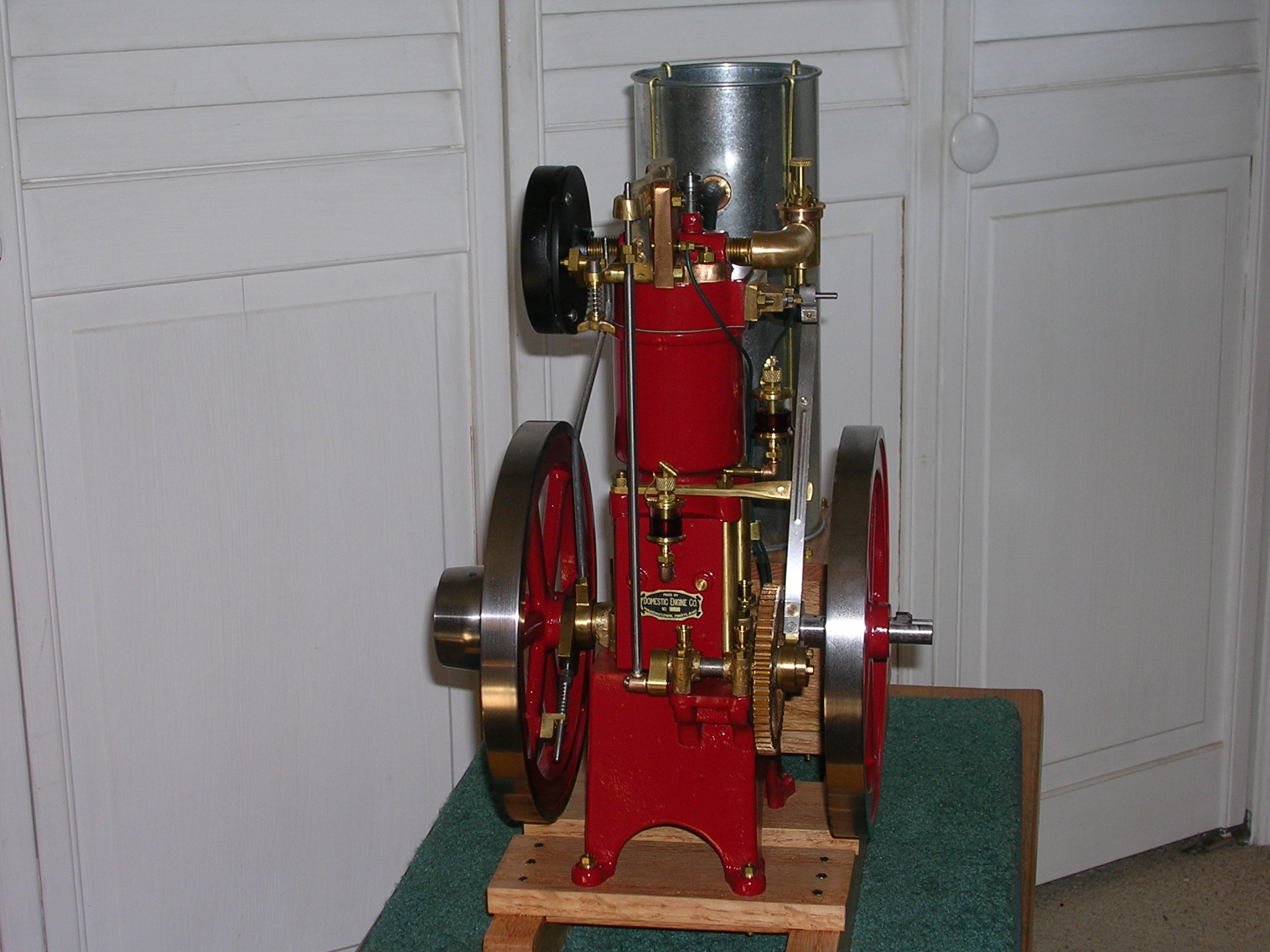

Finished.

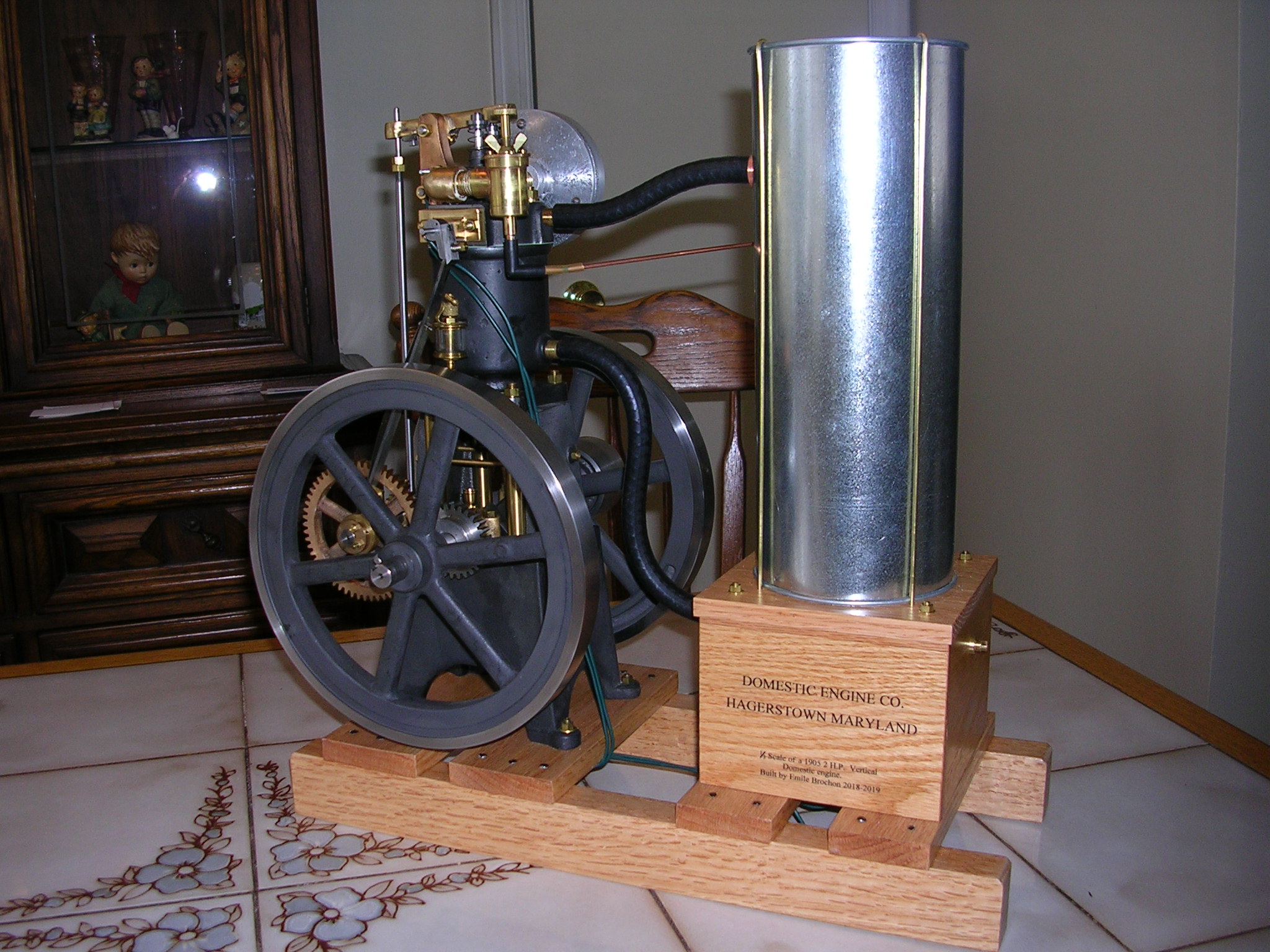

This engine is igniter fired. Fuel tank is in the water tank.
Currently it is not water cooled.
This engine is igniter fired. Fuel tank is in the water tank.
Currently it is not water cooled.
Done. Another good runner.
