The Baby Ericsson
This is a 1/8 scale Ericsson Hot
Air Engine. The engine stands about 9 1/2" tall and has a bore of .900"
diameter with a .520" stroke. The castings were purchased from Myers
Model Engine Works. myersengines.com (They also have many
other casting kits.) This engine, because of its small size, does not have much power and friction has to be keep to a minimum. It
is a nice running engine and only requires a small single flame in the firebox. I run it on propane gas.
The original engine was coal fired and was located in the Henry Ford

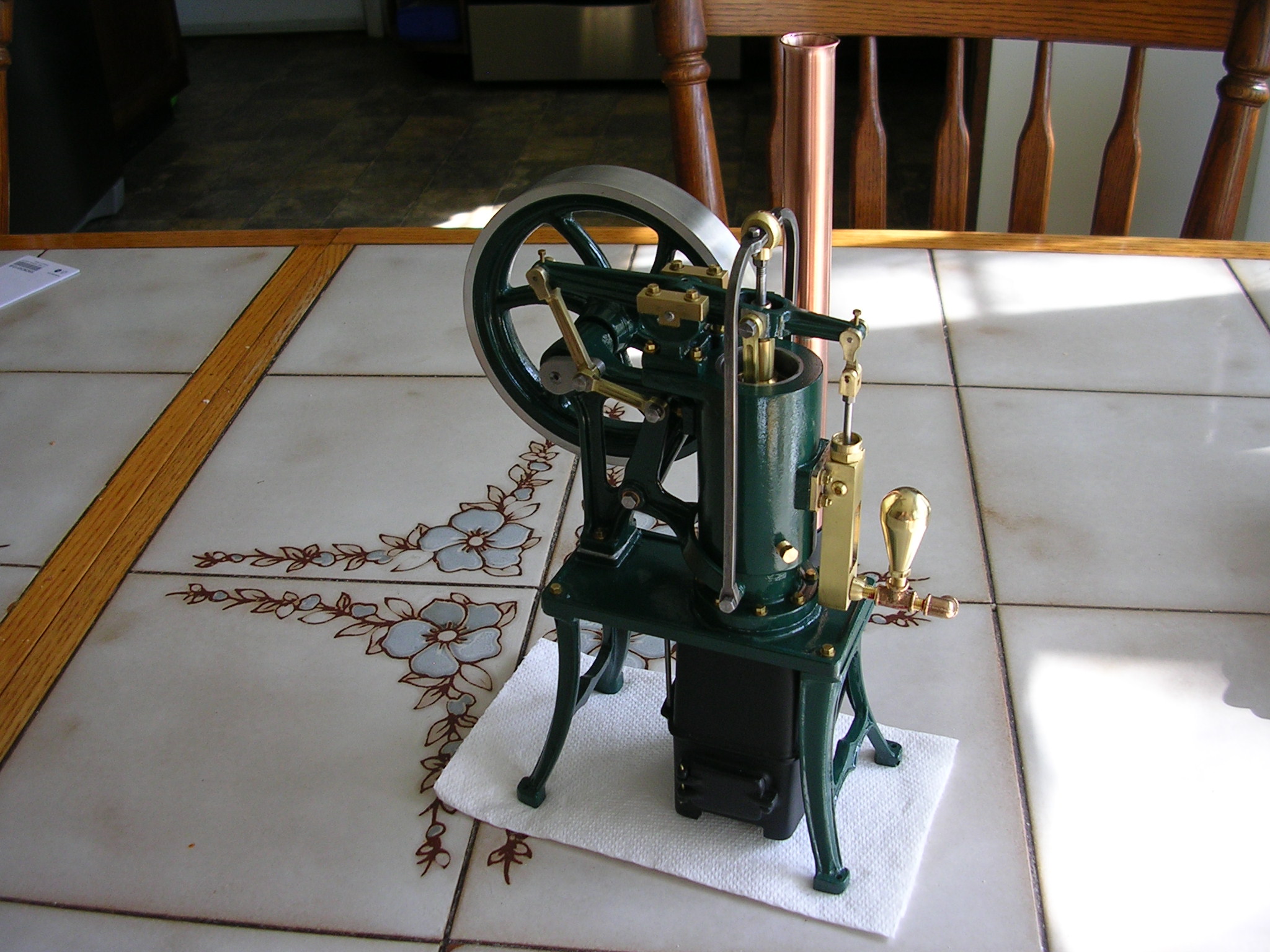

Museum in Dearborn Michigan. Engine it self basically done. |

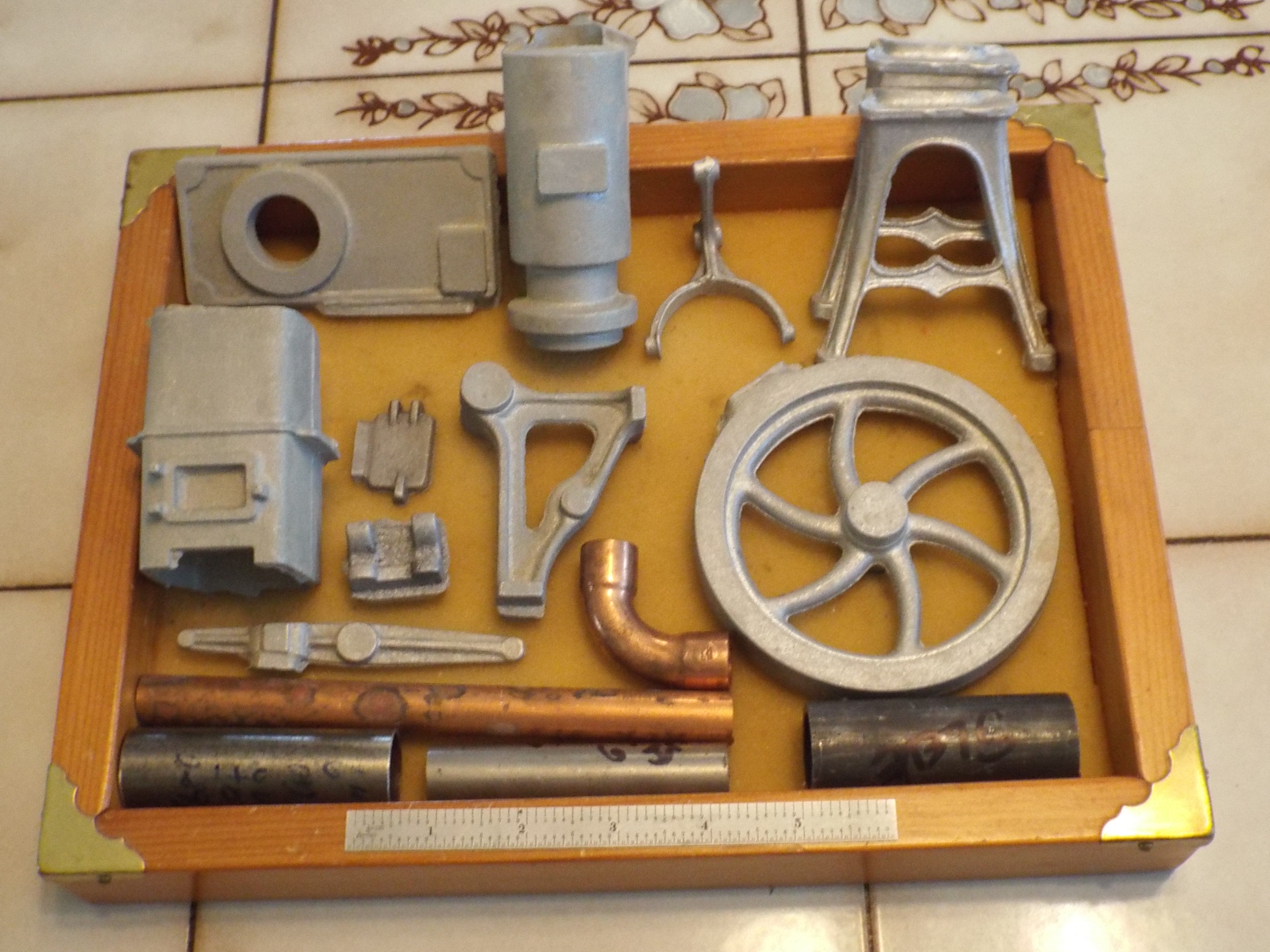

 Castings and parts as received. |

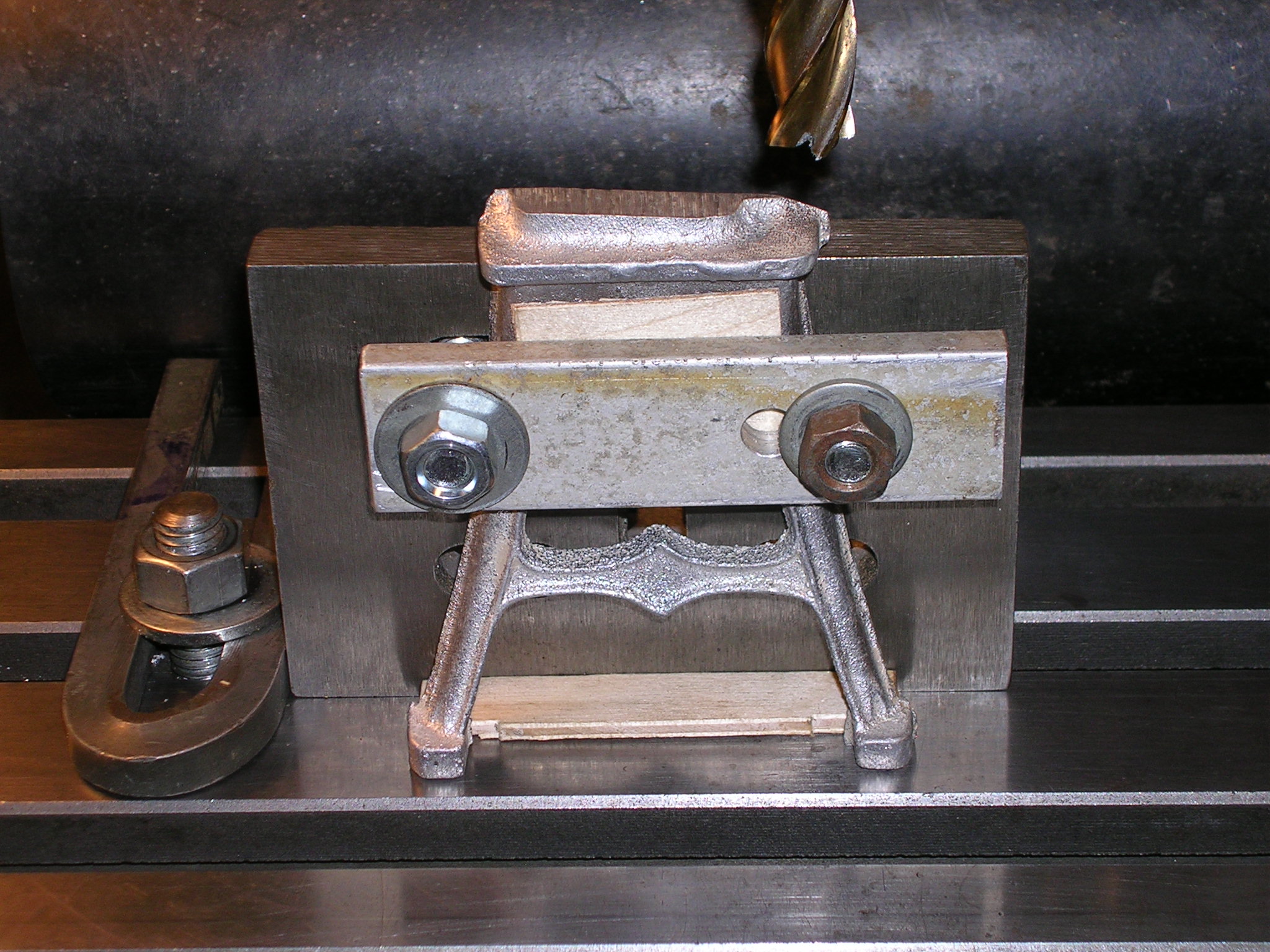

Some of the machining operations.  Starting on the legs. |

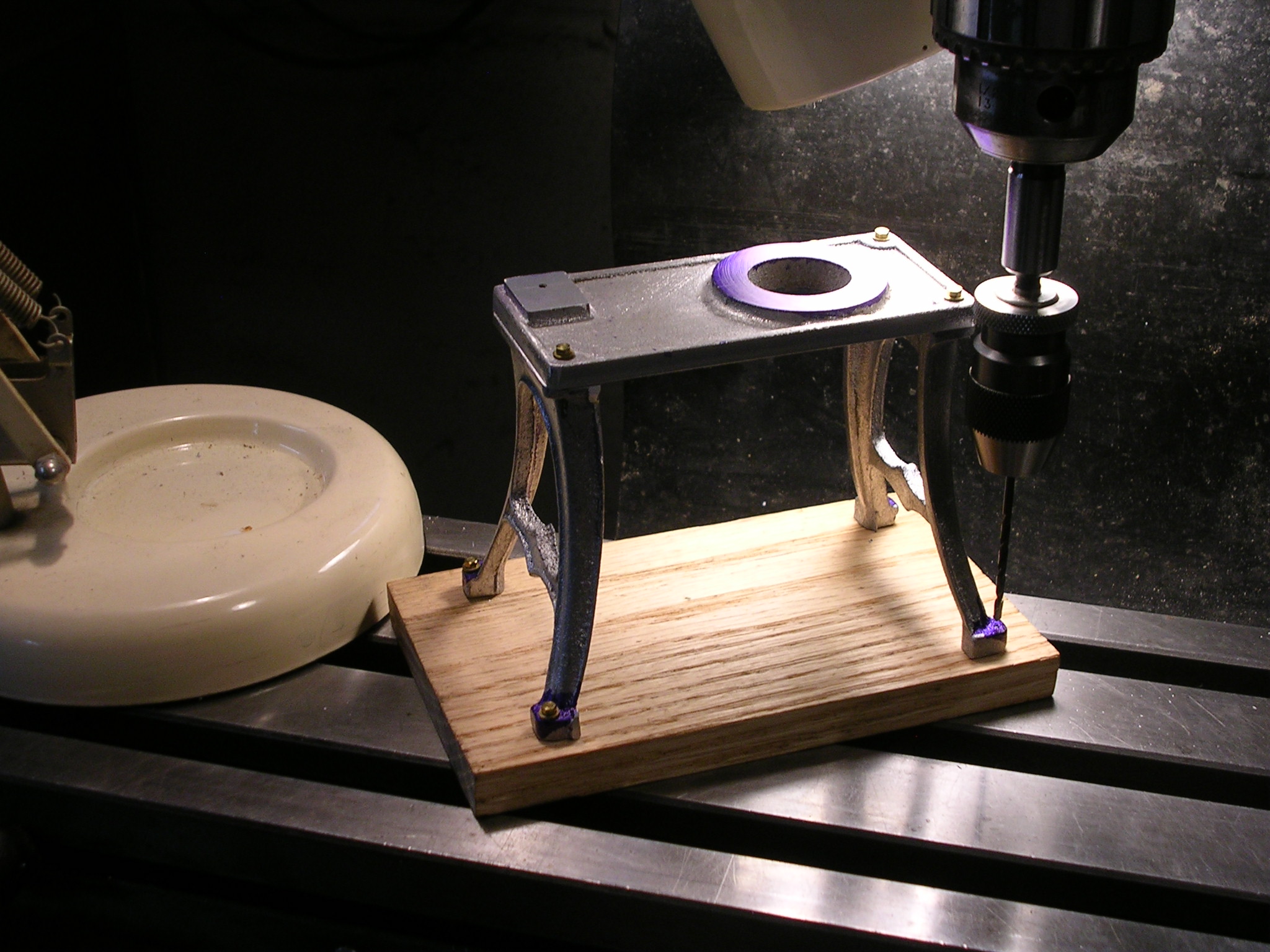

 Legs mounted and being drilled for clearance holes. |

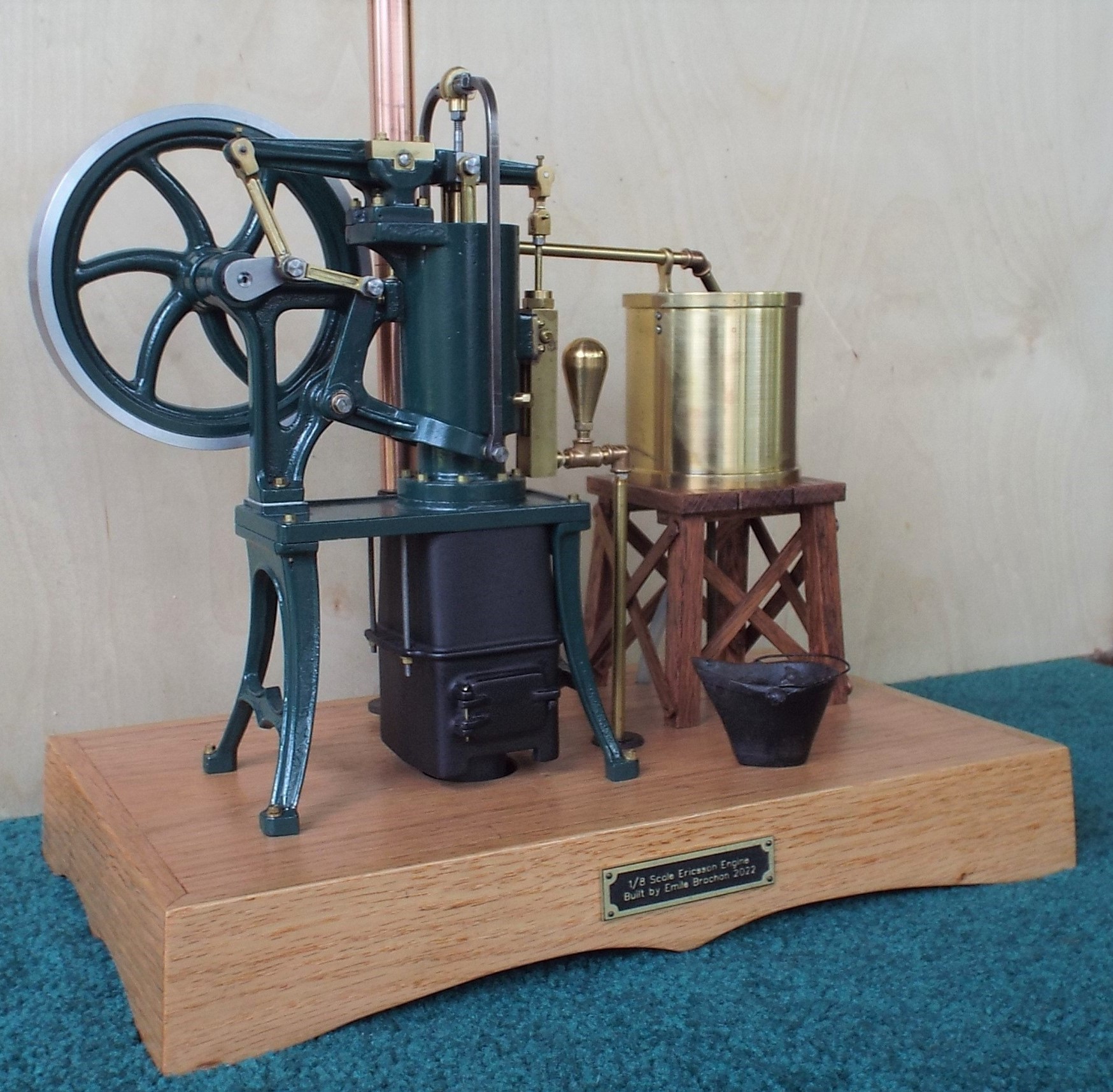

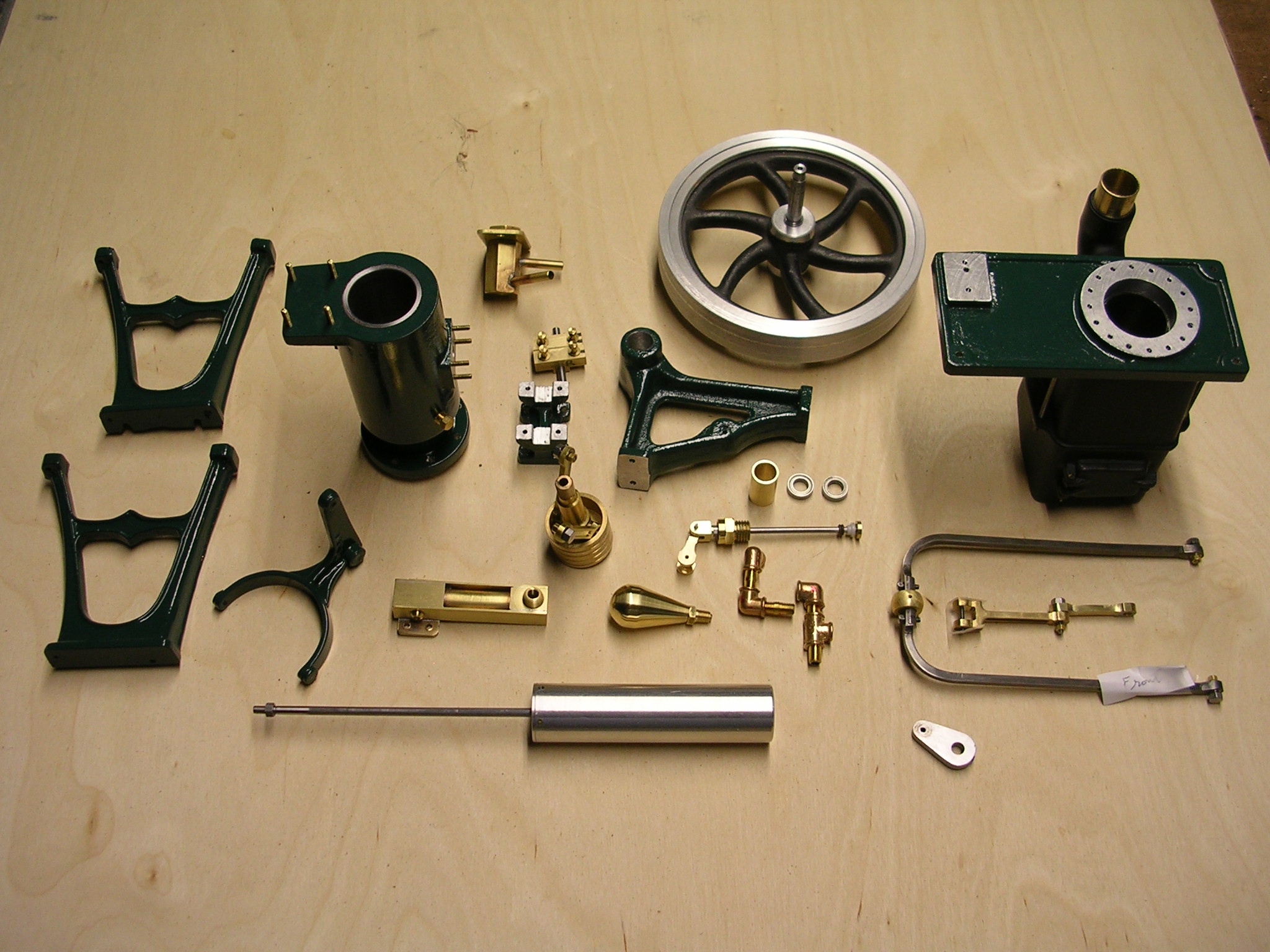

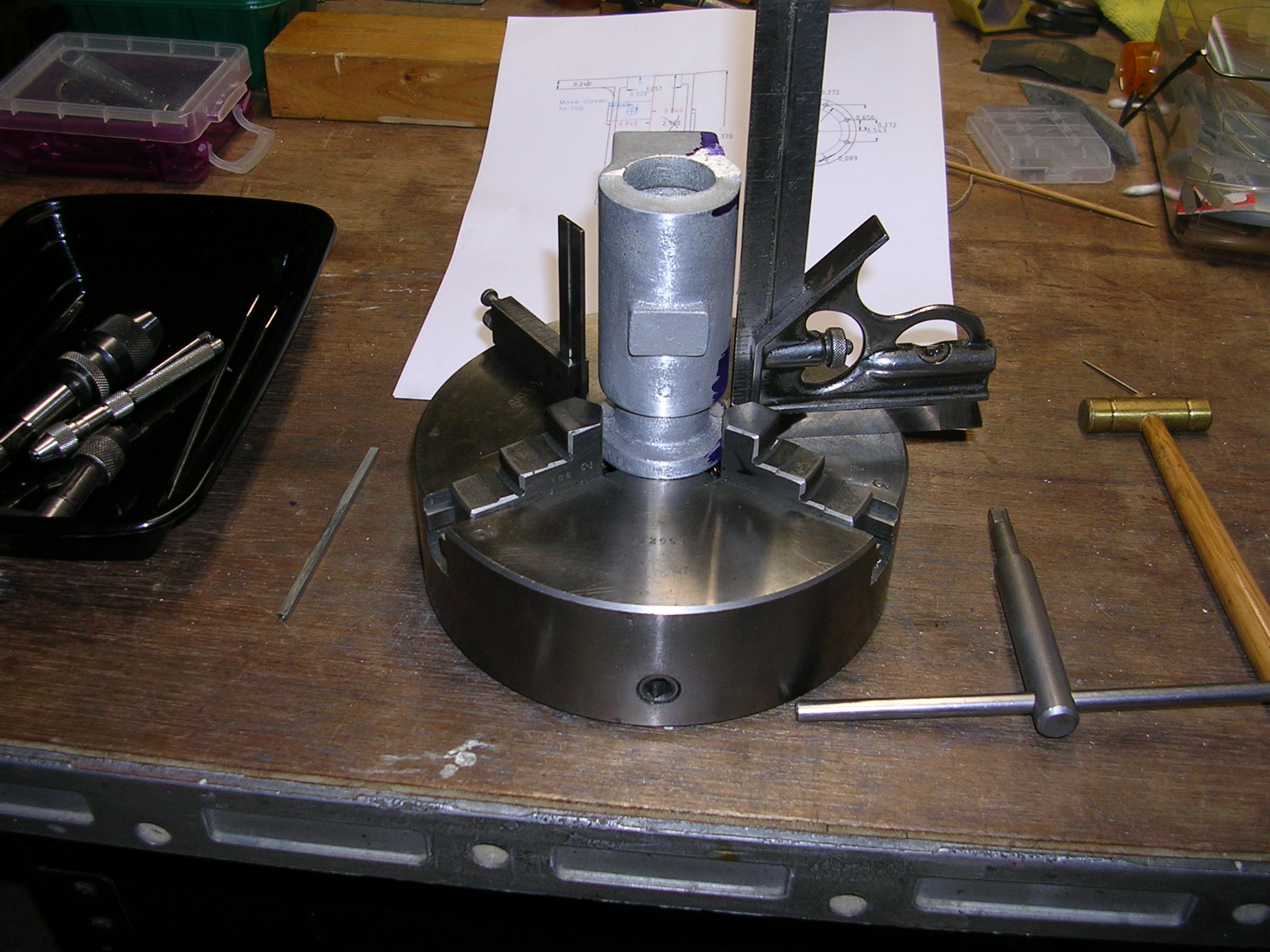

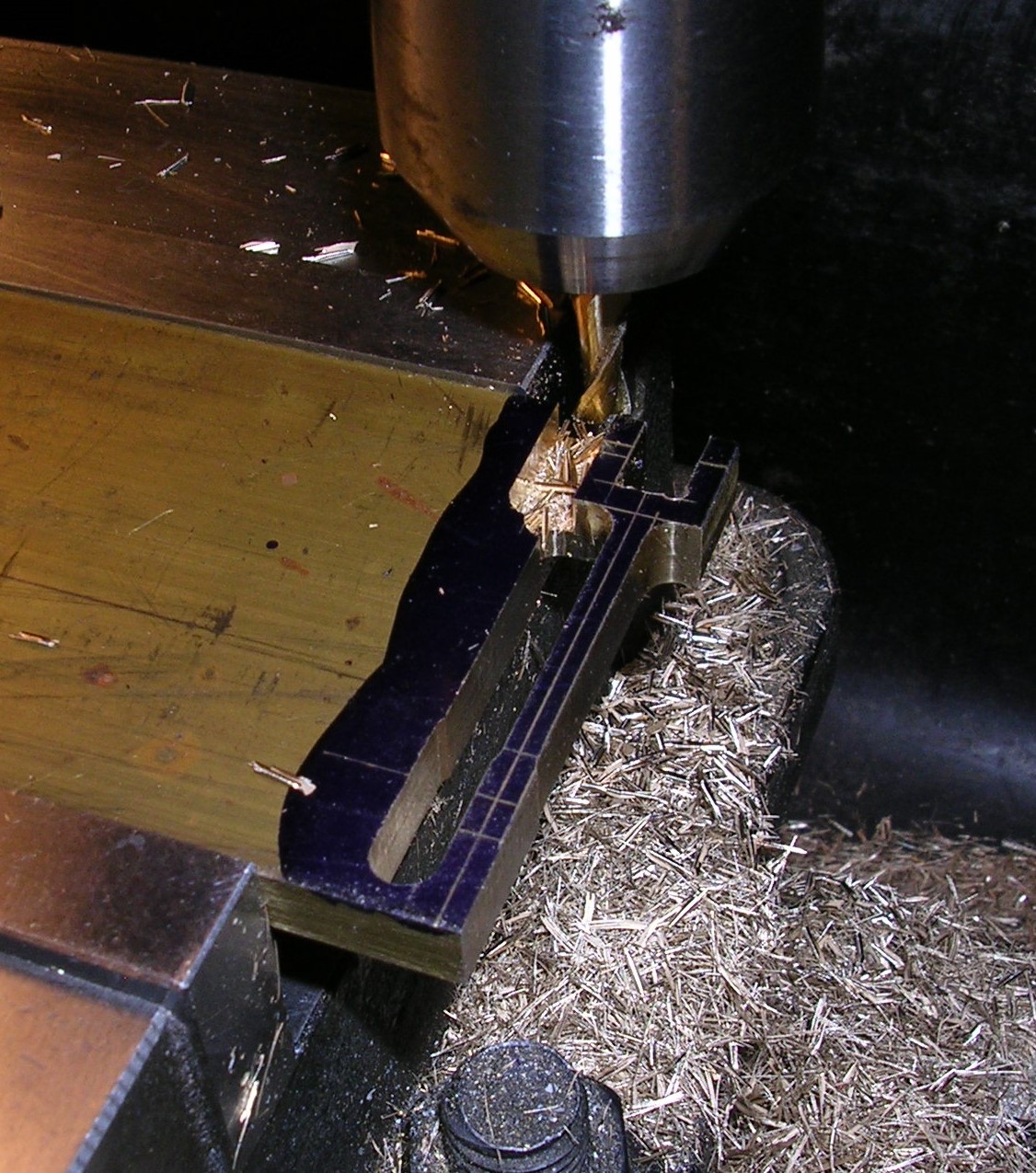

 Drilling and tapping the (16) 2-56 holes for mounting upper and lower units.  Preparing to machine the cylinder.  Machining one of the links.  Most of the parts before finial assembly.  Finally done. September 2022 |
 An old add. |
